6. Settings

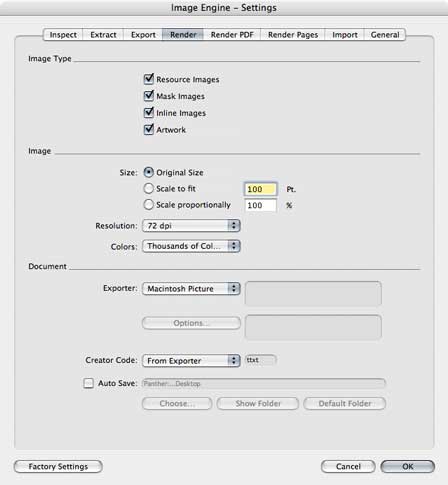

6.4. Render

6.4.1. Image Type

Use the Image Type check boxes to select, which image types will be affected by this function. It is necessary to select at least one image type.

A resource image is a PDF object whose contents are defined by a self-contained content stream, separate from the content stream in which it is used. It is a stream object whose dictionary specifies attributes of the image and whose data contains the image samples.

A mask image is a special form of resource image and has 1-bit samples. Each bit indicates whether paint should be applied at that position; by default, a sample value of 1 indicates that the sample is masked, that is, that no paint should be applied there, so the color already at that position “shows through the mask.” A sample value of 0 indicates that paint is applied there.

As an alternative to the resource image a sampled image may be specified in the form of an inline image. This type of image is defined directly within the content stream in which it will be painted, rather than as a separate object. Because the inline format gives the viewer application less flexibility in managing the image data, it will be used only for small images (4 KB or less).

An artwork object is an arbitrary shape made of straight lines, rectangles, and cubic curves. An artwork object may intersect itself and may have disconnected sections and holes. An artwork object usually includes a painting operator that specifies whether the artwork is filled or stroked.

Note: If the Image Type "Artwork" is activated, all artwork objects of a page, which are arranged completely within the Media Box, are grouped together and treated as one image. All other artwork objects are omitted.

6.4.2. Image

Size: Use these radio buttons to set the size the images.

Use "Original Size" to generate all images in their original sizes. For images this means the pixel size, for pages this means the size of Media Box of the page.
Use "Scale to fit" to generate all images in sizes that are scaled to fit the longest side of the image to the given value.
Use "Scale proportionally" to generate images in sizees that are scaled proportionally to the given value.

Resolution: This menu allows the user to set the resolution of the images.

When exporting or rendering images, the resolution can either be calculated from the source image (relationship of the image size and the image box size) or assigned to one of the fixed values from the pop-up menu.

To render pages, the resolution can be assigned to one of the values from the pop-up menu only.

Colors: This menu allows the user to set the color space of the images.

To render images, the color space can be either calculated from the source image or assigned to one of the fixed values from the pop-up menu.

To render pages, the color space can be assigned to one of the values from the pop-up menu only.

6.4.2. Document

Exporter: The pop-up menu allows the user to choose the exporter. The menu includes the built-in exporter "Macintosh Picture" and a list of QuickTime Exporters. QuickTime Exporters are available only, if QuickTime is properly installed. The available types and options depend on the version of QuickTime. The list is initialized at the launch time of the hosting Adobe Acrobat application.

If one of the QuickTime Exporters is selected, the text field shows a short description.

Some of the QuickTime Exporters offer one or more options. In this case, the "Options" button is available and the text field shows a short description of the current options.

Creator Code: This pop-up menu allows the user to assign a creator code to the produced image files. The creator code determines the default application that will open the file by double clicking the symbol in a Finder window.

The menu item "From Exporter" assigns the default creator code of the current image Exporter.

There are two predefined menu items, assigning the creator code of the applications Adobe Photoshop and GraphicConverter, respectivly .

With the menu item "From File…" an Open dialog appears, which allows the user to select any application or document file from which the creator code is taken.

In the Edit mode the user is allowed to enter any other creator code from the keyboard.

It is also possible to use Drag & Drop to assing a creator code from a file. Drag a file from a Finder window to the settings dialog and drop it nearby the pop-up menu.

Auto Save: allows to save files in a specified destination without showing the Save As… dialog.

The default destination is the Desktop.

Use the "Choose…" button to assign any other then the default folder as Auto Save destination.
Use the "Show Folder" button to open the actually assigned folder in a Finder window.
Use the "Default Folder" button to assign the default destination.

It is also possible to use Drag & Drop to assing a destination. Drag a folder or volume from a Finder window and drop it nearby the Auto Save checkbox.
